Angle measurers and inclinometers

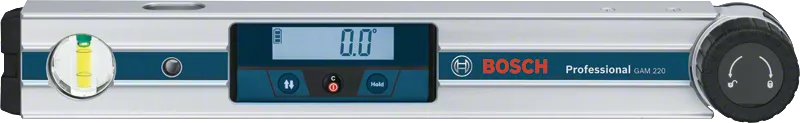

GAM 220 Professional

Angle Measurer

Precise and easy angle measurement

Fast and precise calculation of angles
Angles can be transferred precisely onto workpieces by means of a mechanical locking screw

Functions & key features

Your Selection

with 4 x battery (AA)

Show variant

355.00 SGD

Recommended retail price excluding VAT

Check availability on location

Find a local dealer

Your Selected Variant

with 4 x battery (AA) 0 601 076 500

355.00 SGD

Recommended retail price excluding VAT

Find a local dealer

GAM 220 Professional

Your Selection

with 4 x battery (AA)

Order number: 0 601 076 500

355.00 SGD

Recommended retail price excluding VAT

Find a local dealer

Included in this variant

4 x 1.5 V LR6 battery (AA)

Your selection

Technical data

Additional data

Measurement range

0 – 220°

Arm length

40 cm

Measurement accuracy, angles

± 0.1°

Measurement accuracy, vials

± 0.05°

Accuracy of angle calculation

± 0.1°

Power supply

4 x 1.5 V LR6 (AA)

Battery power, approx.

80 h

Automatic deactivation, approx.

30 min

Weight, approx.

1.3 kg

* Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

** You can find more information about the deviations in the following link: Technical features of products

Find the right spare part

Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.
