Combi lasers
![GCL 25]( "GCL 25")
![GCL 25]( "GCL 25")
![GCL 25]( "GCL 25")
![GCL 25]( "GCL 25")

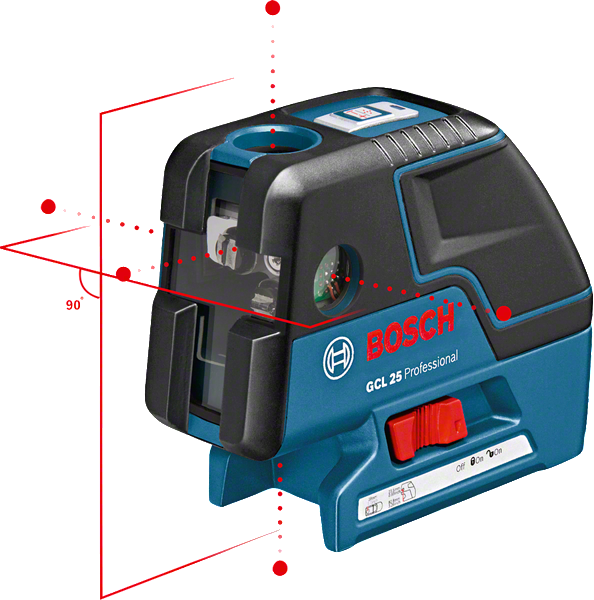

GCL 25 Professional
Combi Laser
The easy solution for all levelling and transfer jobs over short distances
- Extremely versatile: cross line laser and five-point laser in one
- Easy to operate using intuitive user interface
- Compact and ergonomic design
Functions & key features
with 4 x battery (AA), laser target plate
0 601 066 B00
GCL 25 Professional
Your Selection
with 4 x battery (AA), laser target plate
Order number: 0 601 066 B00

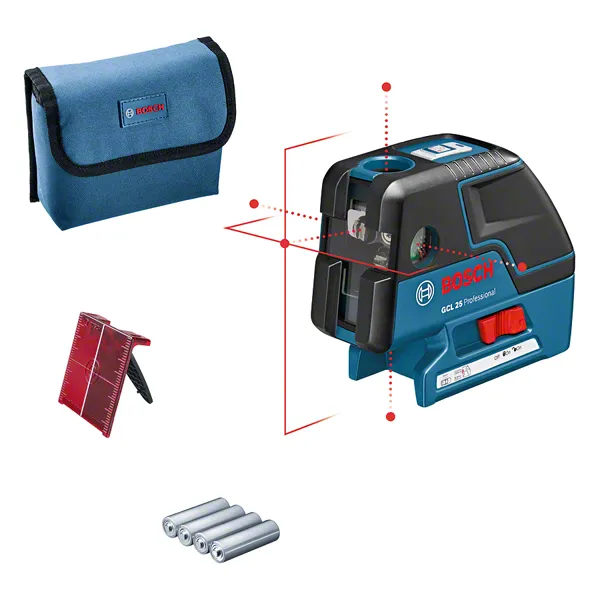

Included in this variant
-
Protective Bag
-
L-BOXX inlay for tool
-
4 x 1.5 V LR6 battery (AA)
-
Laser target plate
Technical data
Additional data
Dust and splash protection
IP 54
Working range
10 m
Accuracy
Laser lines and horizontal point beams: ± 0.3 mm/m* ; Vertical point beams: ± 0.5 mm/m* (*plus use-dependent deviation), Horizontal laser line: ± 0.2 mm/m* ; Vertical laser lines: ± 0.3 mm/m* (*plus use-dependent deviation)
Tripod thread
1/4", 5/8"
Colour of laser line
red
Laser diode
630 – 650 nm, < 1mW
Operating temperature
-10 – 50 °C
Storage temperature
-20 – 70 °C
Laser class
2
Working range of laser points, max.
10 m (top), 5 m (bottom), 30 m horizontal
Self-levelling range
± 4°
Levelling time
4 s
Power supply
4 x 1.5 V LR6 (AA)
Operating time (max.)
12 h in line and point mode, 24 h in 5-point mode, 30 h in line mode
Weight, approx.
0.6 kg
Color of plumb points
red
Projection
2 lines / 5 points
Plumb point accuracy
± 0.7 mm/m* (*plus use-dependent deviation)
Working range, value
10 m
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
*** Plus use-dependent deviation. You can find more information about the deviations in the following link:
