GIM 60 L Professional
Digital Inclinometer
Laser-accurate incline transfer over longer distances

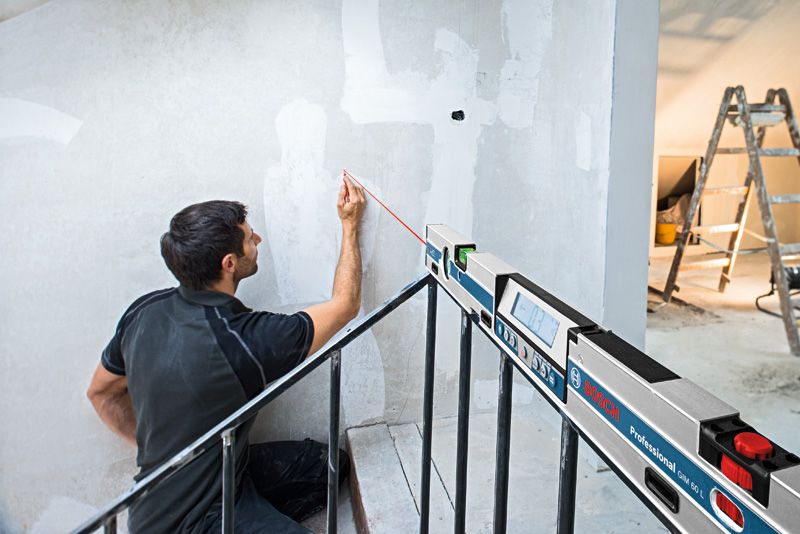

- Integrated point laser for incline measurement up to a distance of 30 m
- Strong magnets and two straps for securely fastening the instrument to workpieces
- Incline mechanism for fine adjustment on uneven surfaces
Functions & key features
Your Selection
- with 4 x battery (AA), Protective Bag
400.00 SGD
Recommended retail price excluding VAT
with 4 x battery (AA), Protective Bag
0 601 076 900
GIM 60 L Professional
Your Selection
with 4 x battery (AA), Protective Bag
Order number: 0 601 076 900
400.00 SGD
Recommended retail price excluding VAT
Included in this variant
-
Protective Bag
-
4 x 1.5 V LR6 battery (AA)
Technical data
Additional data

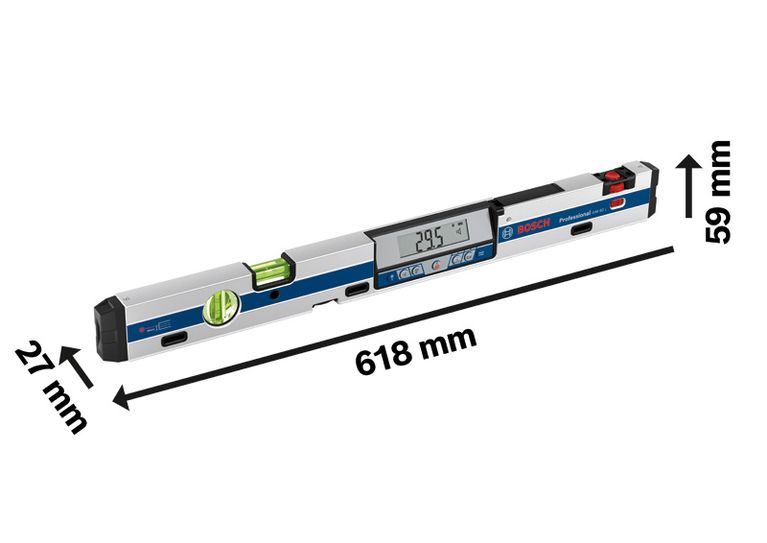

Length
60 cm
Measurement range
0 – 360° (4 x 90°)
Electronics measurement accuracy 0°/90°
± 0.05°
Electronics measuring accuracy at 1– 89°
± 0.1°
Working range (laser)
30 m
Power supply, inclination measurement
1 x 9 V-6LR61 + 2 x 1.5 V LR03
Weight approx.
0.91 kg
Laser type
650 nm, < 1 mW
Laser range
30 m
Laser class
2
Levelling accuracy of laser
± 0,5 mm/m
Units of measurement
°, %, mm/m
Tripod thread
1/4"
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
