Line lasers

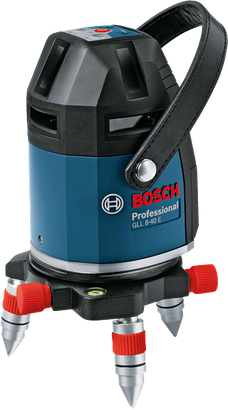

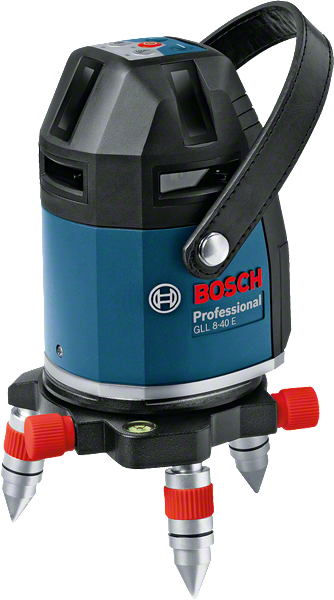

GLL 8-40 E Professional
Line Laser
No More Shaking - Bosch Electronic Line Laser Level
- Smart - World class electronic levelling technology for comfortable line visibility and stability
- Accurate - High levelling accuracy at ± 0.1 mm/m and 360° fine adjustment platform for maximal precision
- Compact - Light and easy-to-carry with aluminium case providing quick and convenient mobility
- Robust - IP 54 rated for maximum tool protection against splash water and dust for the toughest jobsite
Functions & key features
Your Selection
- in carrying case with 4 x battery (AA), laser receiver
in carrying case with 4 x battery (AA), laser receiver
0 601 063 HB0
GLL 8-40 E Professional
Your Selection
in carrying case with 4 x battery (AA), laser receiver
Order number: 0 601 063 HB0
Included in this variant
-
Laser receiver LR5 ProfessionalOrder number: 0 601 069 G80
-
Hand strap
-
4 x 1.5 V LR6 battery (AA)
-
Pouch
-
Laser viewing glasses, red, BL-GLASS (spare part number 1 608 M00 05B)
-
Carrying case
-
1 x 9 V block battery (6LR61)
Technical data
Additional data |
|
|---|---|
| Tripod thread | 5/8" |
| Working range | 15 m |
| Working range with receiver | 40 m |
| Accuracy | ± 0.1 mm/m |
| Dust and splash protection | IP 54 |
| Laser diode | 630 – 650 nm, < 1mW |
| Operating temperature | -10 – 50 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 2 |
| Self-levelling range | ± 3° |
| Power supply | 4 x 1.5 V LR6 (AA) |
| Operating time (max.) | 24 h |
| Weight, approx. | 1.1 kg |
| Working range, value | 15 m |
| Working range with receiver, value | 40 m |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
