Laser measures
![GLM 100]( "GLM 100")
![GLM 100]( "GLM 100")
![GLM 100]( "GLM 100")

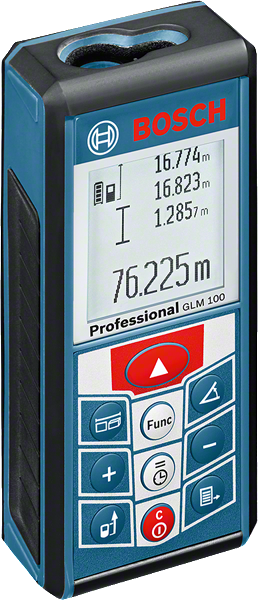

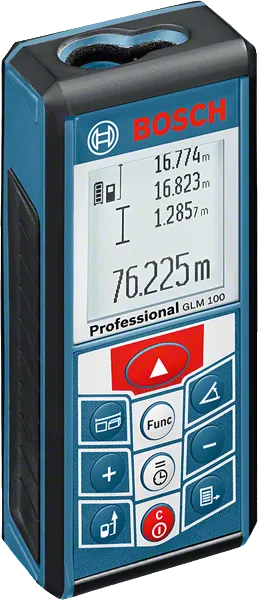

GLM 100 Professional
Laser Measure
The high-tech solution for convenient measurement
- Can be recharged via standard micro USB port
- Timer function can be switched on/off – for precise measurement from difficult positions
- Small and handy
Functions & key features
in cardboard box with accessory set
0 601 072 P40
GLM 100 Professional
Your Selection
in cardboard box with accessory set
Order number: 0 601 072 P40
Included in this variant
-
Micro USB cable
-
Pouch
-
Cardboard box
Technical data
Additional data |
|
|---|---|
| Laser diode | 635 nm, < 1 mW |
| Measurement range | 0.05 – 100.00 m |
| Laser colour | Red |
| Weight, approx. | 0.14 kg |
| Dust and splash protection | IP 54 |
| Measuring range, up to | 100 m |
| Measurement time, typical | < 0.5 s |
| Laser class | 2 |
| Measurement accuracy, typical | ± 1.5 mmᵈ |
| Measurement time, max. | 4 s |
| Power supply | 1 x 3.7 V Li-Ion battery (1250 mAh) |
| Automatic deactivation | 5 min |
| Units of measurement | m/cm/mm |
| Memory capacity (values) | 20 + 1 |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
ᵈ Plus deviations depending on application and distance, see
GLM 100 Professional: Further information
Product Highlights

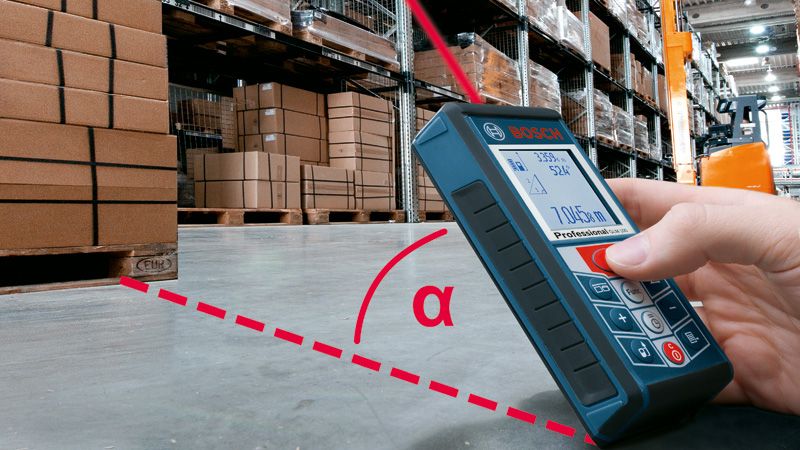

Additional functionality due to integrated 360° incline sensor
Equipment & Application
Automatic storage of the last 50 measured values and one constant
Additional Information
Precise and easy to operate due to illuminated display which flips automatically depending on the orientation of the instrument
